VXDIAG VCX FD For GM Support CAN FD Protocol DoIP Car OBD2 Diagnostic Tool OE-Level Diagnosis ECU Coding J2534 Programming

VXDIAG VCX FD Diagnostic Tool for GM

VCX-FD is a smart vehicle diagnostic interface designed by ALLSCANNER VXDIAG, which represents the diagnostic technology of the next generation. The product uses a newly upgraded dual-core high-speed processor to fully support multi-channel CAN-FD / DOIP and traditional diagnostic protocols, and compatible with more original diagnostic software, with multi function.

VCX-FD also supports local and super remote dual-mode diagnosis to provide users with excellent diagnosis experience.

OE-Level All System Diagnostic

By penetrating all available ECUs, including but not limited to PCM, ECM, EPS, PDM, TPM, BCM, ABS, SCCM, etc., VCX FD retrieves information and performs OE-level diagnostics on all available vehicle systems, like read and clear codes, View Data Stream and Freeze Frame and read vehicle information, ECU Replacement. It not only enables you to troubleshoot promptly but also makes you customize the configuration.

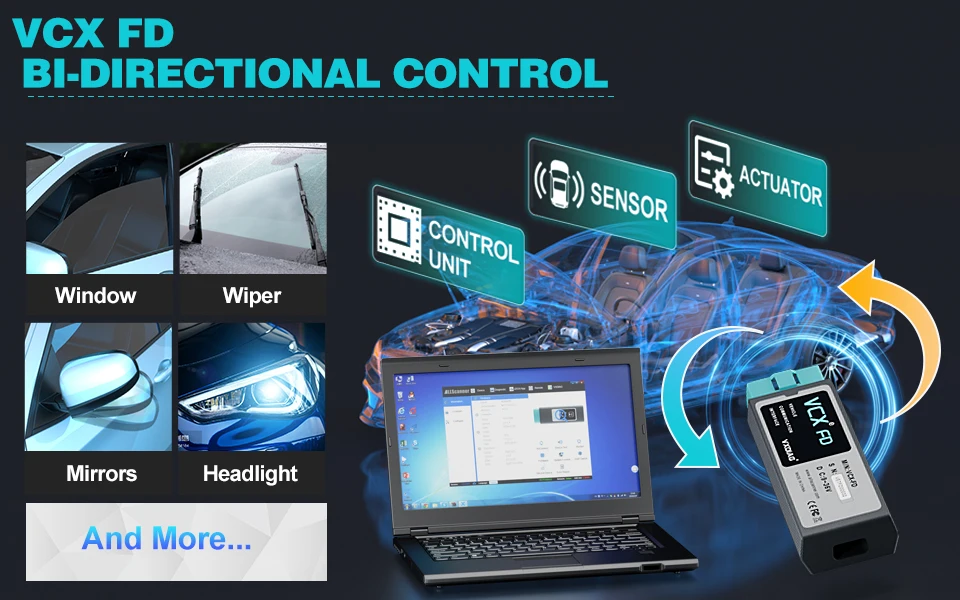

Bi-directional Control Active Test

The process of sending and retrieving information from a vehicle control module with a device is known as Actuation Test or Bi-Directional Control.

VCX FD is with this capacity. The main aim of the actuation test function is to request the control module to perform a specific function including system tests, actuator tests, functional tests, inspection tests, reprogramming or re-initialization, thus saving diagnostic time.

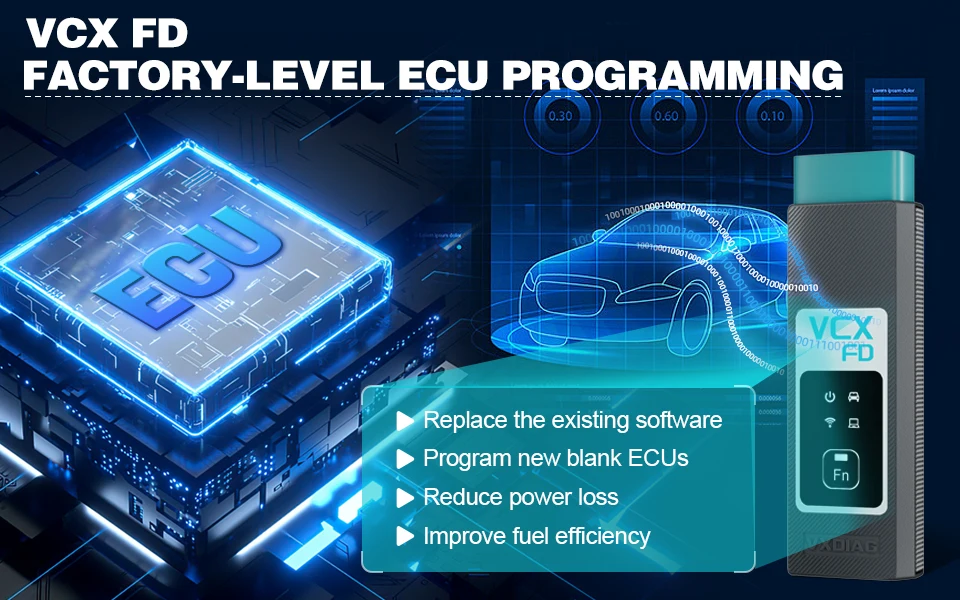

J2534 ECU Programming

🚗VCX FD J2534 Pass-Thru ECU Programming Tool can be used with PC to perform ECU programming features. It helps you program blank ECUs, refresh high-end functions, update vehicle ECU software etc., greatly improving the applicability of vehicles.

🚗Work with PC, VCX FD is fully compliant with SAE J2534-1 & J2534-2 standards, supporting major OEM diagnostic tools, it speeds up reprogramming and diagnostics, saving time and boosting efficiency.

🚩We don't provide the original online account for programming.

Advanced ECU Coding / Configuration

VCX FD can perform many advanced features with OEM software, such as refresh hidden functions, disable the annoying functions, enhance vehicle performance, customize OE-settings, reprograms the adaptive data for certain components after repairs or replacements, customized configurations for high-end models and so on to enhance fuel efficiency and ensure safe driving.

🚩We don't provide the original online account for coding.

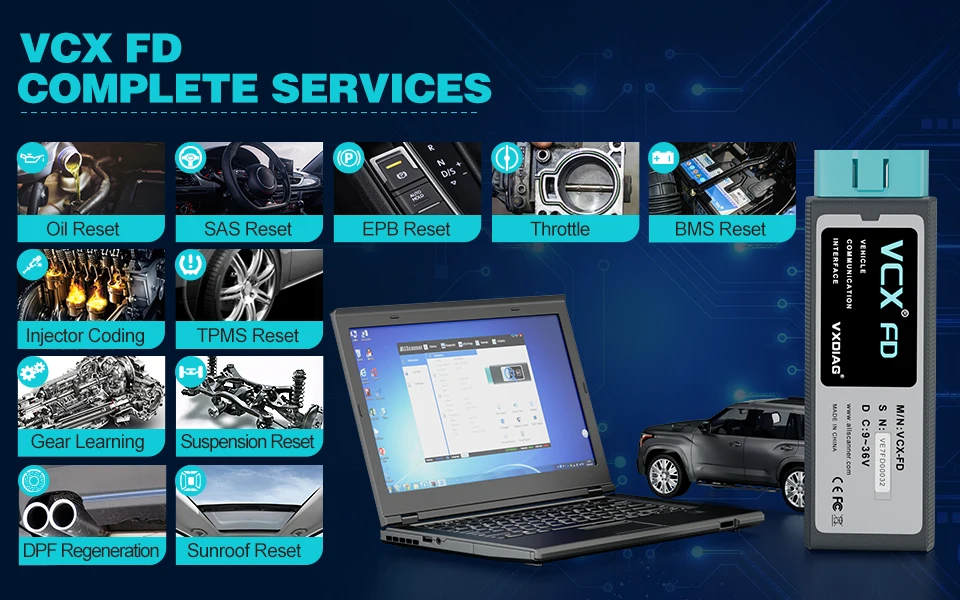

Complete Services

For various scheduled service and maintenance include Maintenance Light Reset, throttle learning, steering angle learning, brake pad reset, tire pressure reset, ABS exhaust,battery matching,gear information learning,injector coding, DPF regeneration,headlight matching, gearbox learning, suspension matching ,Sunroof initialization, A/F adjustment, electronic pump start, release transportation mode, tire modification, door and window calibration, urea reset, NOx reset,start-stop setting, language setting, seat calibration, shielding failure, etc.

How to SetUp & Use VCX FD?

Let’s start the software installation on WINDOWS system:

1. First download and install software (we don't provide the link)

2. Install the latest VX MANAGER version via www.vxdiag.net

4. Start the VX Manager. Make sure you your computer network is good. Connect your device by USB cable/WiFi to computer and OBD2 Socket to your ECU Bench connector or Your car’s OBD2 Port.

Install Passthru driver. Check your device license.

5. Turn on the car ignition. You can start to diagnose the car.

🚩Installation Tips: Please turn off anti-virus software before install.

Lifetime License Free Update

Q: How to resolve "License Expired" issue?

A: 🌎Download VX Manager
1.Please download latest vx manager .
2.After download, please install the new vx manager.

🌎Update the Firmware
1.Then connect device to laptop, laptop connecting network.
2.Open new vx manager, click "Firmware" to update.

🌎Update the License
1.Click "Update license" to renew on the vx manager.

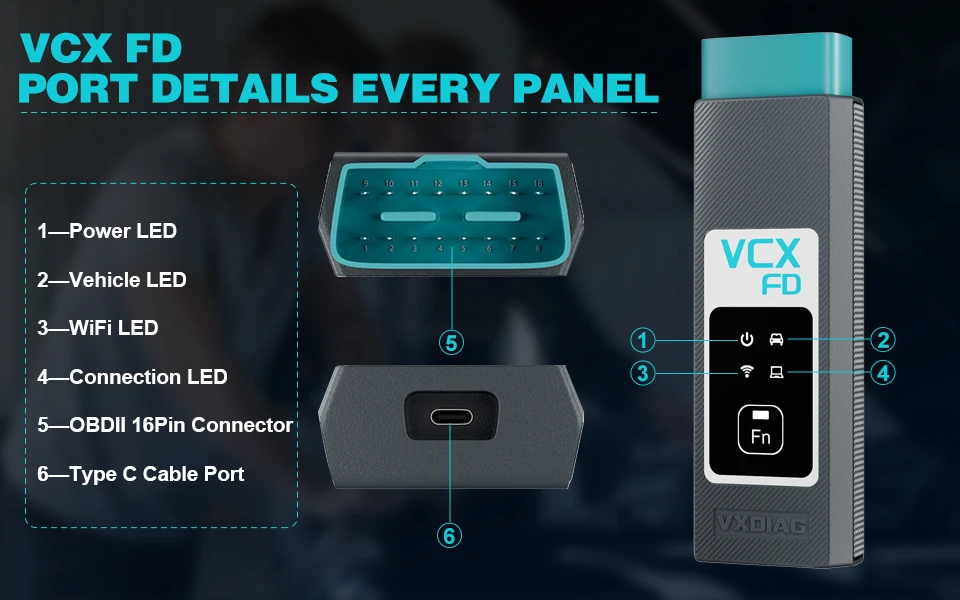

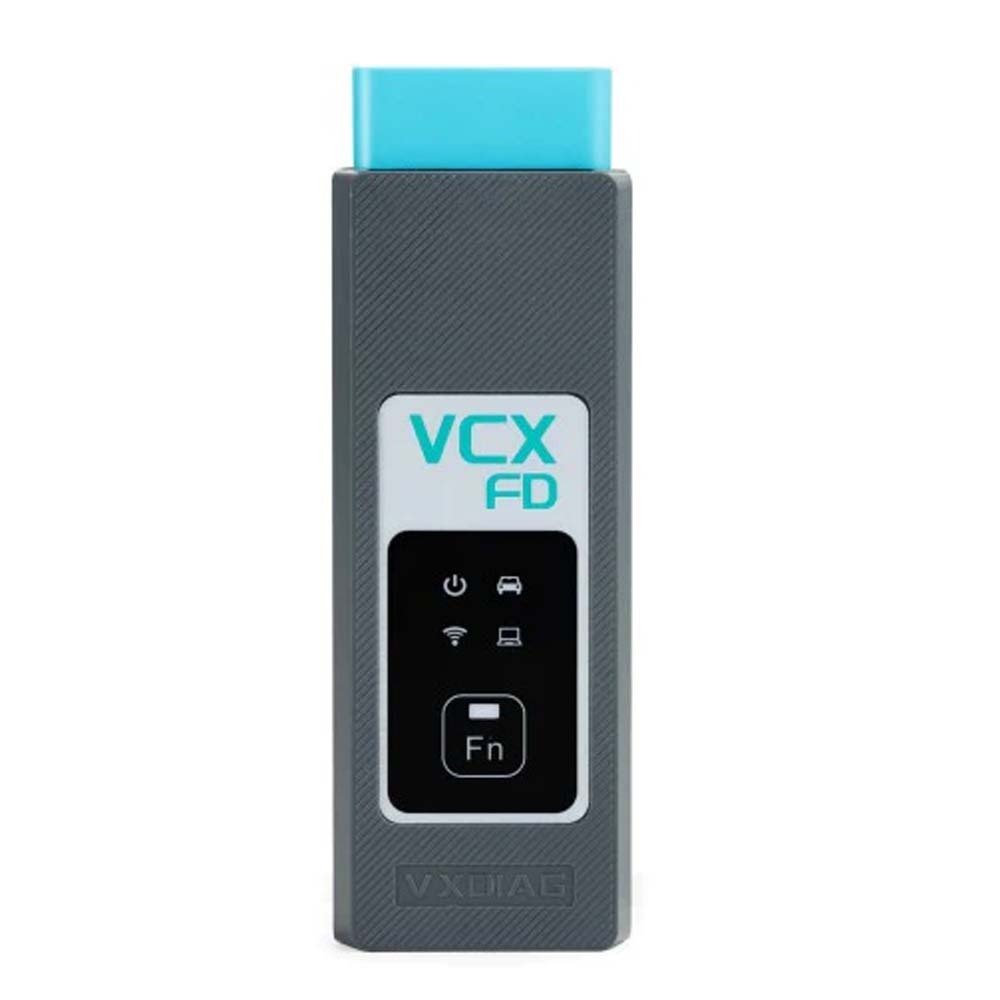

Port Details Every Panel

1-Power LED: Equipment Working Status: RED
Breathing flash when starting normally
Flash rapidly during hardware failure

2-Vehilcle LED: Vehicle communication Status: TWO-COLOR
Flash blue during traditional protocol
Flash green during DoIP protocol

3-WiFi LED: Wireless Network Status: BLUE
Flash quickly during wireless communication
Flash slowly during wireless distribution

4-Conection LED: Host Communication Status: TWO-COLOR
Flash BLUE during USB communication
Flash GREEN during LAN communication

Fn Button: Remote Diagnostic Status: GREEN
Flash slowly after remote connection
Flash quickly during remote diagnosis

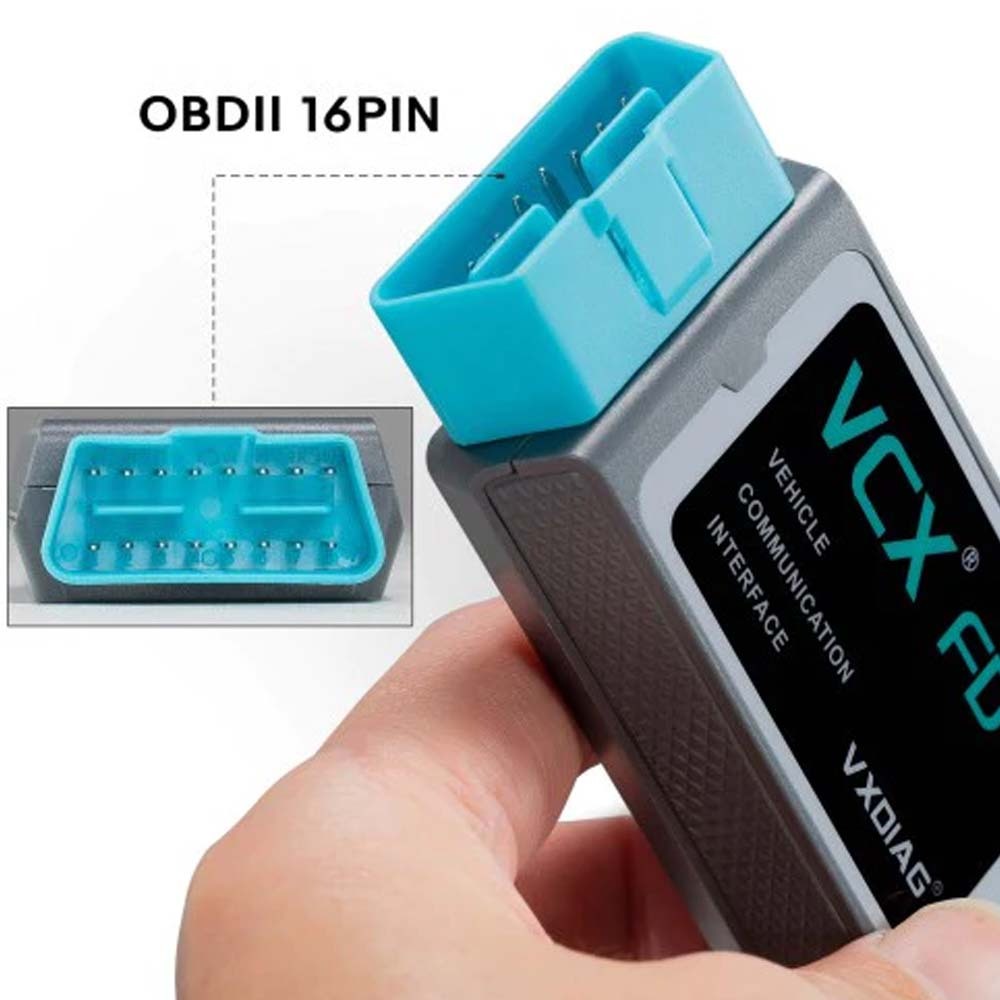

5-OBDII 16Pin Connector: Connect to vehicle's OBD2 port

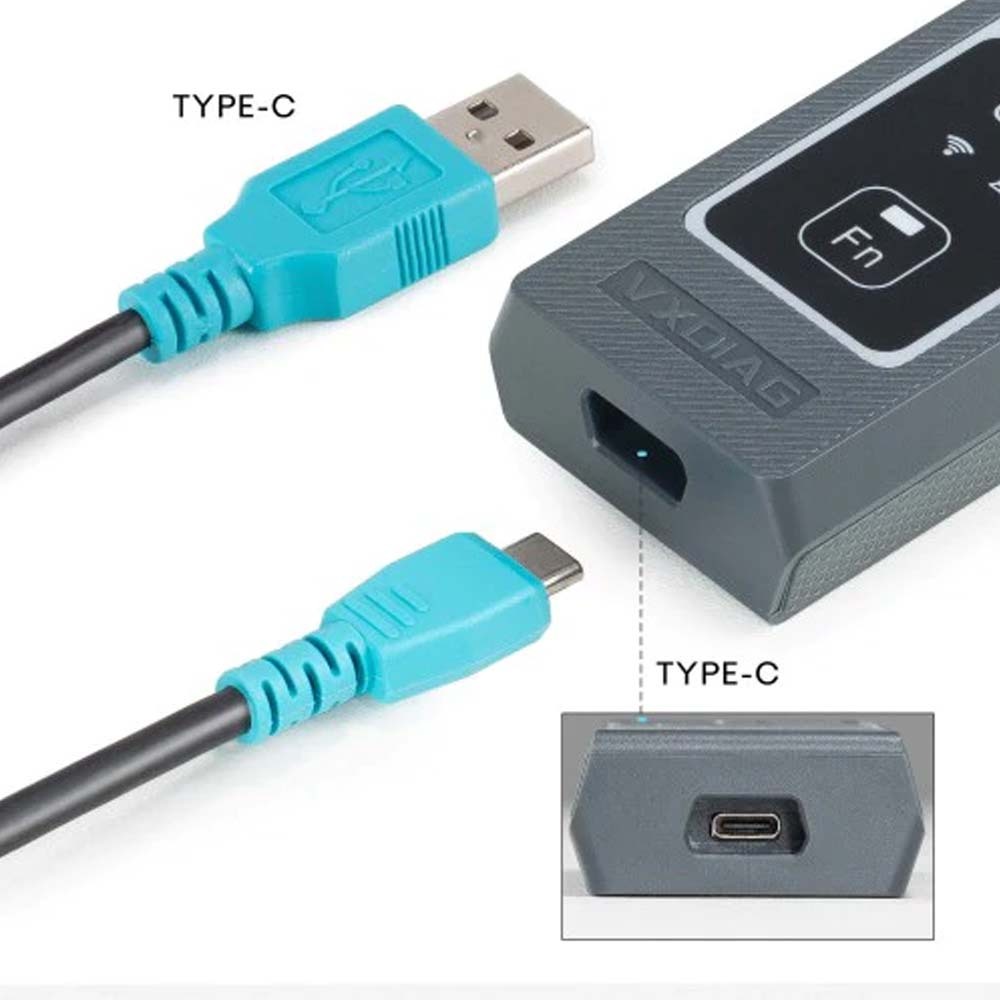

6-Type C Cable Port: Connect to PC via cable

Advantages of VCX FD Hardware

VCX FD is an Extreme Performance Vehicle Diagnostic Interface

1. Dual -core architecture coordinated work, more communication performance

The 550MHz ARM protocol processor implements CAN-FD and all traditional vehicle BUS protocols.
The 560MHz MIPS network processor realizes the DOIP super diagnostic gateway.
Dual -core processors communicate through the Ethernet, high bandwidth and low latency.
The diagnostic communication speed has been several times more than the previous generation of products.

2. Dual operating system, the software is more stable

The RTOS real -time operating system guarantees the vehicle bus protocol multi -task and the communication.
OpenWRT network operating system flexibly connects a variety of network interfaces and vehicles.

3. Support more comprehensive vehicle BUS protocol

Integrate OBD intelligent protocol multi -router chips, all pins can intelligently switch any protocol.
Support 3-channel CAN-FD multi-channel complication, up to 5M BPS high-speed communication.
Support ISO-13400 standard dual-road DOIP interface Option 1 and Option 2.

4. Flexible and easy -to -use connection method

The host communication interface supports multiple connections such as USB / RJ45 / WLAN, which is flexible and easy to use.
Built -in wireless route mode, diagnostic computers can wirelessly connect devices.
Support the wireless workstation mode, the device can access the wireless LAN, and any computer can connect the device.
Support the vehicle DOIP Ethernet into WLAN to achieve wireless DOIP diagnosis.
